Opteka GH1 Pro Heavy Duty Gimbal Head with Quick Release (Supports up to 30lbs)

List Price: $390.00
Your Price: $149.95
You Save: $240.05 (62 %)
Item Number: GH1

opteka capture the dream

Opteka GH1 Pro Heavy Duty Gimbal Head with Quick Release

Brand New • 1 Year Warranty

The GH1 from Opteka is professional heavy-duty gimbal head that will support any camera and lens. The GH1 is lighter and stronger than any other gimbal heads on the market, with a custom designed stiffer swing arm, which is CNC-machined out of solid aluminum.

The GH1 is rated to support over 30 lbs - essentially, the longest telephoto lens you can find (800mm-plus) will be well-served by this silky-smooth gimbal. The GH1 gimbal head features a horizontal adjustable mounting element with quick release, which is much easier for installing the lens and serves to avoid the shear stress on the lens collar that side-mounting introduces.

Cutting-Edge Design
The GH1 gimbal head was completely designed to reduce weight and improve stiffness and overall strength. It can support 30 lb and only weighs 2.7 lb

Ball Bearings
Full ball-bearing support in tilt axis for zero static or dynamic friction, resulting in 100% smooth movement

Quick-Release System
The quick-release base allows the head to be used with any QR standard plates. Plate is included which has a 1/4" screw thread for the camera

Horizontal Mount with Lockout Knob
A fully retained quick-turn knob allows infinite balance position adjustment and steadfast clamping.

Ergonomically Designed Knobs
Soft-touch rubberized knobs offer strong clamping and easy use with bare or gloved hands especially when wet

All-Weather Design
From the hard powder-coated support arm that is also rubberized, to the stainless steel shafts, to the black anodized clamp, the finish will endure the worst a photographer can throw at it

http://i1186.photobucket.com/albums/z374/dmc1965/newalbum/gh1.jpg?t=1327441339 http://i1186.photobucket.com/albums/z374/dmc1965/newalbum/gh3.jpg?t=1327441339

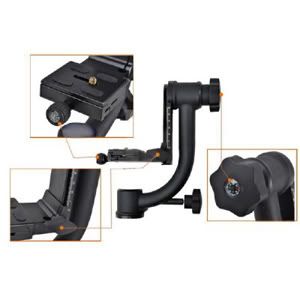

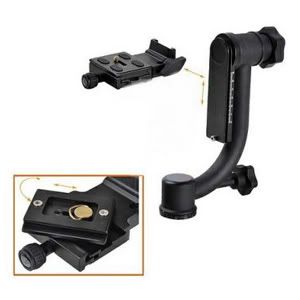

Quick-release System Adjustable Horizontal Mount with Lockout Knob



Key Features

  • Rugged design and construction, smooth, fast tracking horizontally and vertically

  • Horizontal adjustment of the lens platform allows precise positioning to find the center of gravity of any size lens and camera system

  • Calibrated scale for repeatable positioning of lenses

  • Separate panning movement for total control

  • Includes standard quick release plate and built-in compass



http://i1186.photobucket.com/albums/z374/dmc1965/newalbum/gh2.jpg?t=1327441347

http://i1186.photobucket.com/albums/z374/dmc1965/newalbum/gh4copy.jpg?t=1327442578

GH1 Gimbal Head with DSLR/Medium lens

GH1 Gimbal Head "in the field"




Load Capacity 30 lbs (13.6 kg)
Lockout Knob Yes
Quick Release Yes (Arca-Swiss type)
Spirit Level No
Compass Yes
Tripod Mount Thread 3/8"-16 thread
Dimensions (HxLxW)
Weight
8.7 x 7.5 x 2.75" (22 x 19 x 7 cm)
2.7 lbs (1.2 kg)
